Description

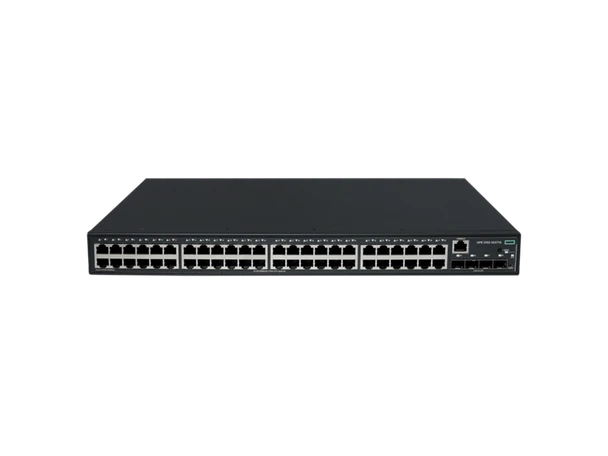

The HPE Networking CW 2050 48-Port PoE+ Managed Switch (S6X71A) provides reliable, high-performance network connectivity and power for small and medium-sized businesses, branch offices, and distributed network environments. The S6X71A features 48 10/100/1000BASE-T PoE+ ports and 4 dedicated 1G/2.5G SFP uplink ports, providing flexible connectivity for computers, wireless access points, IP phones, security cameras, and other network devices. With a 410W PoE power budget, the switch can power a wide range of connected devices without requiring separate power adapters or cabling.
Features and Benefits
- 48 Gigabit PoE+ ports: Connect and power a large number of network devices using a single switch.
- 410W PoE power budget: Provides up to 35W per PoE+ port for wireless access points, IP phones, cameras, and other compatible devices.
- 1G/2.5G SFP uplinks: Four dedicated SFP ports provide flexible, high-speed connections to other switches and network infrastructure.
- High-performance switching: Delivers 116 Gbps switching capacity and 86.30 Mpps throughput for efficient network traffic handling.
- Advanced network management: Supports Web GUI, CLI, CW Dashboard, HPE Intelligent Management Center (IMC), SNMP, AirWave, and REST API management options.
- Built-in security: Includes granular ACLs, 802.1X authentication, secure boot, encrypted access, DHCP and ARP protection, and other network security controls.
Ideal For:
- Small and medium-sized business networks
- Branch offices and distributed locations
- Wireless access point deployments
- IP phone and unified communications networks
- IP security camera installations
- PoE-powered IoT device deployments
- High-density wired network environments
- Organizations requiring 1G/2.5G uplink connectivity
Download the HPE Networking CW 2050 Data Sheet
Specifications
| Manufacturer: | HPE Networking |
| Model: | HPE CW 2050 |
| Part Number: | S6X71A | S6X71A#ABA |
| Device Type: | Smart Switch |
| Install Location: | Indoor |
| Ports: | 48x 10/100/1000BASE-T PoE+ ports 4x 1G/2.5G BASE-X SFP ports 1x RJ-45 console port |
| Memory and Processor: | CPU: Single-core Arm® 1.25 GHz Flash: 256 MB Packet buffer: 1 MB |
| Throughput: | 86.3 Mpps, maximum |
| Switching capacity: | 116 Gbps |
| Power Supply: | Internal, 90V–264V AC |
| Input Voltage: | Rated voltage range: 100–240 VAC at 50 Hz or 60 Hz Maximum voltage range: 90–264 VAC at 47 Hz to 63 Hz |
| Operating Temperature: | -5°C–45°C (23°F–113°F) |
| Power consumption: | 25W, AC> |
| Mounting Information: | 1U rack-mountable; designed for installation in a standard 19-inch equipment rack. |
| Product dimensions: | 17.32 × 10.24 × 1.73 in |
| Weight: | 11.2 lbs. |
| Warranty: | Limited lifetime hardware warranty. |
