Description

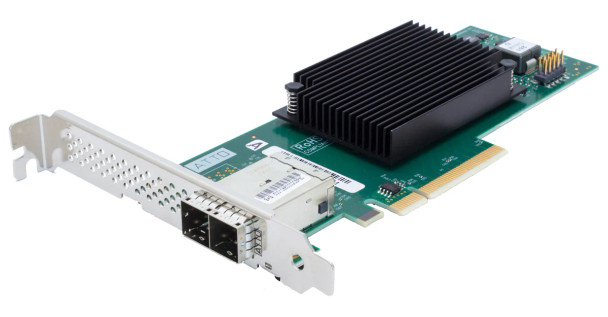

The ATTO ExpressSAS H1280 GT (ESAH-1280-GT0) is a high-performance 12Gb/s SAS/SATA host bus adapter designed to deliver reliable, low-latency connectivity for external storage environments. Built on a PCIe 4.0 x8 interface, this 8-port external adapter provides the bandwidth and scalability required for modern data-intensive applications, making it an ideal solution for data centers, media workflows, and enterprise storage infrastructures.
Features and Benefits
- 12Gb/s SAS/SATA connectivity for high-speed data transfer
- PCIe 4.0 x8 host interface for maximum bandwidth
- 8 external ports
- Supports up to 3 million 4K IOPS for demanding workloads
- Backward compatible with 6Gb/s and 3Gb/s devices
- Advanced data streaming and low-latency performance
- Broad OS support: Windows®, Linux®, macOS®, VMware®, FreeBSD, illumos
- Low-profile form factor for flexible deployment
- Enterprise-ready reliability with a 3-year warranty
Ideal Applications
- LTO tape backup and archive environments
- Media & entertainment workflows (video editing, broadcast, VOD)
- Data centers and cloud storage infrastructure
- Digital forensics and surveillance storage
- Database and transactional systems
- Financial services and high-frequency trading environments
Specifications
| Brand: | ATTO Technology |
| Part Number: | ESAH-1280-GT0 |
| Product Name: | ATTO 12Gb ExpressSAS 8-Port External SAS/SATA Adapter |
| Interface: | PCI Express 4.0 x 8 |
| External Ports: | 8 external connections |
| Data Rate: | 12Gb SAS/SATA |
| Device Support: | SAS & SATA HDD/SSD, Tape Drives |
| Operating System Support: | Windows® / Windows® Server, macOS®, Linux®, VMware, FreeBSD, illumos |
| Dimensions: (L x W) | Low Profile: 6.6" x 2.713" |
| In the Box: | ATTO 12Gb ExpressSAS 8-Port External SAS/SATA Adapter (ESAH-1280-GT0), Full height and low profile connection brackets |
| Warranty: | Three Years from ATTO |
